K 2010. Geothermal Energy Used Even More Efficiently.

Direct Evaporation Technology with VESTAMID® Polyamide 12 Pipes

Geothermal energy is the most efficient form of heating. It generates 45% less CO2 than oil-based heating and 33% less than gas. What is more, the new direct heat exchanger technology using propane increases the efficiency of this heating system by a further 10% as no brine needs to be pumped. Essen, Germany-based Evonik Industries delivers the plastic for the tubes required for this technology, which are driven some 100 meters deep into the ground. The material used is VESTAMID®, a polyamide 12 that provides a high barrier to permeation from propane which, unlike steel, can be processed from the reel and does not require corrosion protection.

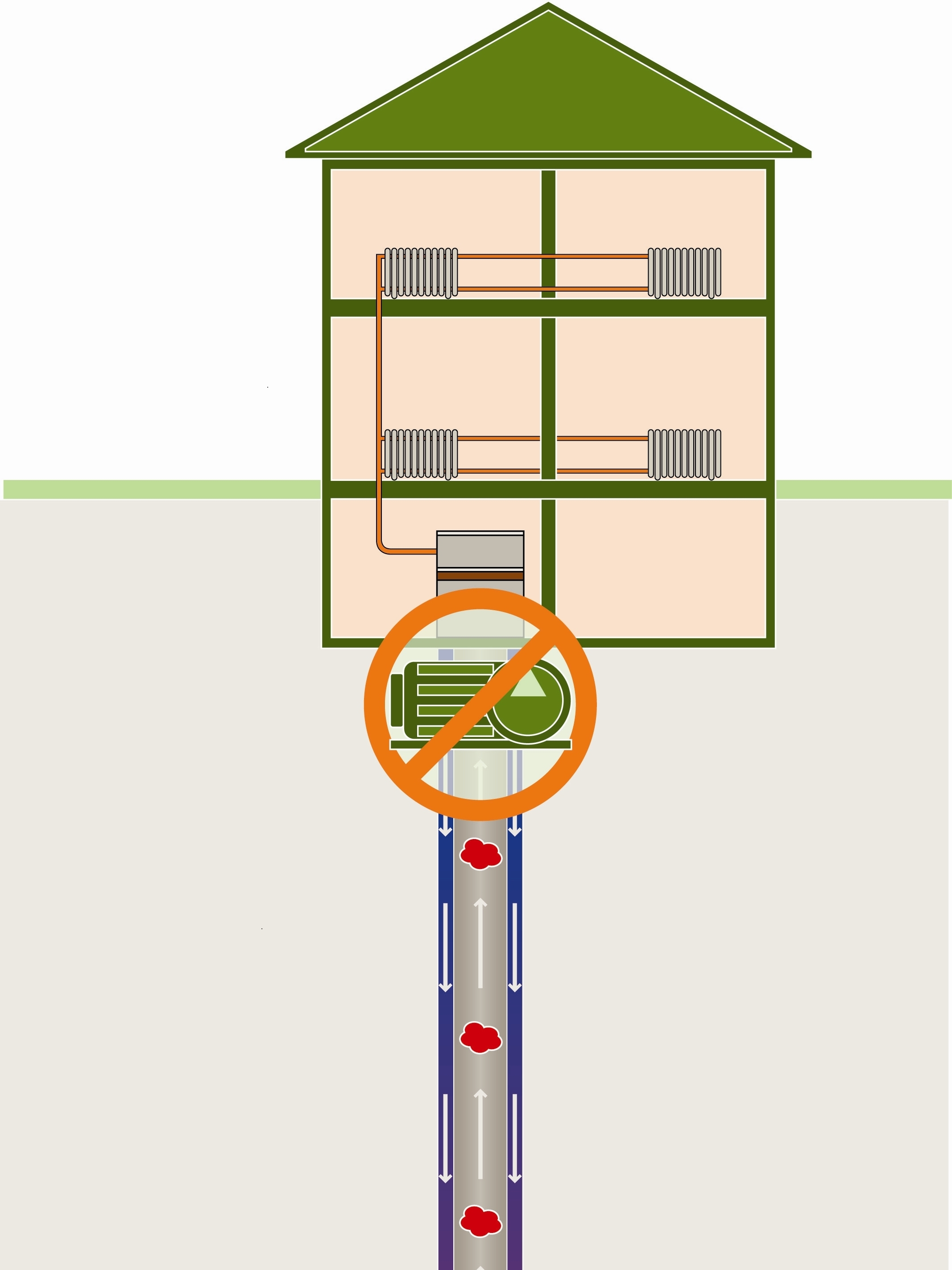

The conventional process for generating geothermal energy uses a water-glycol brine for the heat exchange that is pumped using polyethylene tubes. The new direct heat exchanger process instead uses the refrigerant R290 (propane), which is available in the tubes as a gas and a liquid during the two phases. Because of the difference in temperature—at depths of 100 meters it is around 4°C to 5°C warmer than close to the surface—the propane circulates exclusively due to the physical effect of the evaporation and condensation. This makes a pump unnecessary, which saves energy and consequently increases the heat generation efficiency by 10%. Polyethylene tubes cannot be used for this method, however, as they are permeable to propane gas.

The alternatives are steel pipes, or pipes made of polyamide 12. The advantage of the latter is that they do not corrode and can be wound on rolls so that no on-site welding is required when the pipes are being laid. Tubes made of VESTAMID® modified especially for this application also have a rough inner surface that is indispensible for the development of falling film in the heat exchanger.

Exceptional solutions in plastics are no exception

Working together with its customers and partners, Evonik develops products and system solutions for and with plastics. We thus have a range of services that satisfies market and application requirements.

Evonik is present in all major growth markets around the globe. Its customized products and solutions include raw materials, sophisticated additives and paints, engineering plastics, high-performance polymers, and semi-finished products. They are virtually exactly what is needed for tomorrow’s efficient, sustainable, and environmentally friendly ideas.
