VESTAMID® L1930 gear wheels for steering angle sensors
Driving in the dark, on a bend, or on a wet road—modern vehicles are usually equipped with dynamic stability control to keep them in lane in situations such as these. This electronically controlled driver assistance system requires an angle sensor with an important safety function to be built into the steering column. This is why Valeo Schalter und Sensoren GmbH, headquartered in Bietigheim-Bissingen (Germany) opted for VESTAMID® L1930 polyamide 12 from the Resource Efficiency Segment of Evonik, Essen, as the material for the gear drive of the steering angle sensor.
The steering angle sensor measures the steering angle of the steering wheel and continuously indicates to the dynamic stability control system—also known as the electronic stability control, or ESC—the direction in which the driver wants to go. The ESC compares the driver’s intended course with the vehicle’s actual direction and makes the necessary adjustments by targeted braking of individual wheels. This should prevent acceleration of the vehicle on bends, for example, and ensure that the driver can retain control of the vehicle.

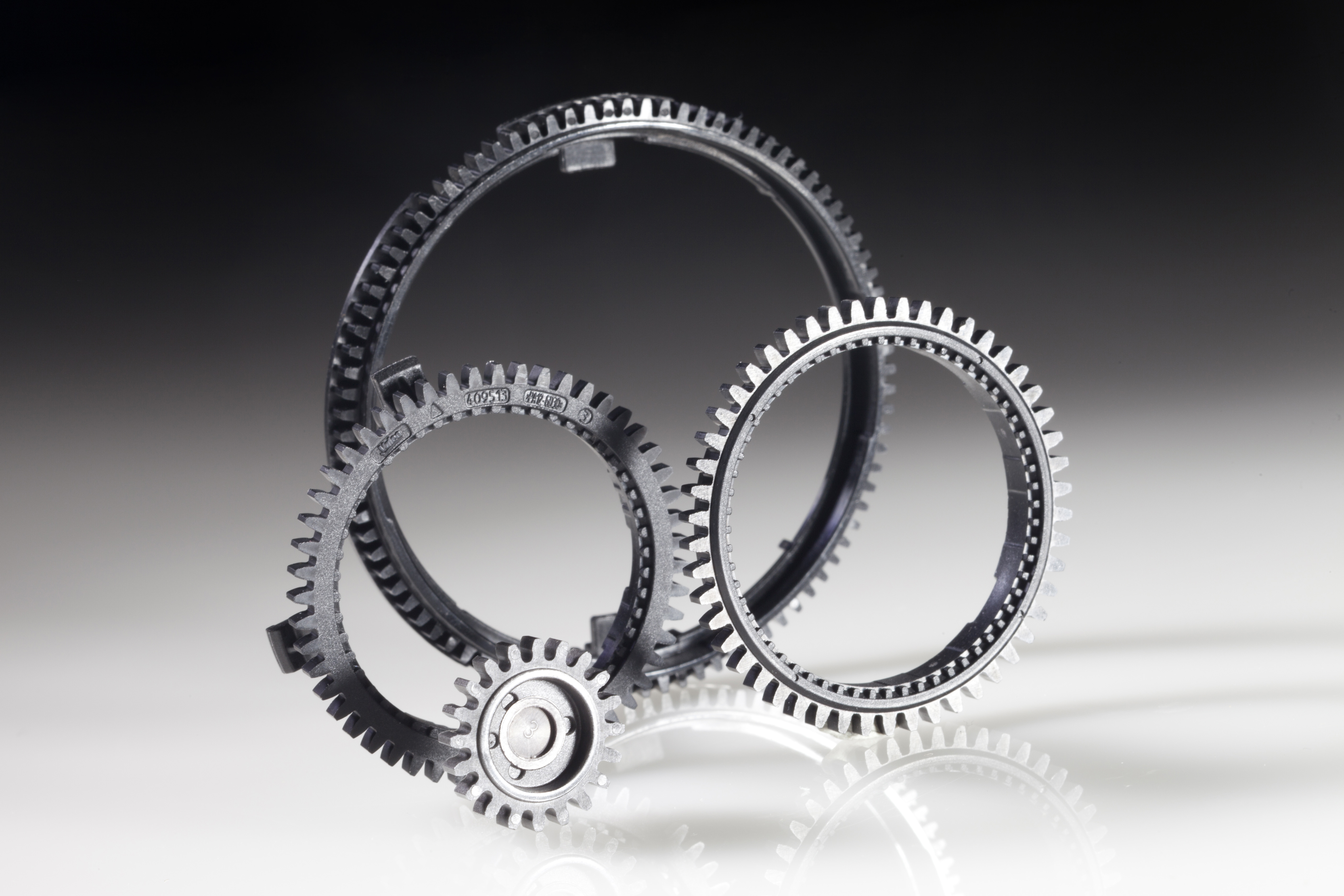

The sensor is mounted in the steering column. A rotor consisting of a large gear wheel is actuated by the steering column and drives two smaller gear wheels with different numbers of teeth (on the Nonius principle). The magnets embedded in the gear wheels allow detection of the rotational position of the gear wheels by means of Hall or MR angle sensors. The electrical information provided by the angle sensors thus allows calculation of the absolute steering angle. The materials used for the gear drive must satisfy stringent requirements to ensure high accuracy and ruggedness in the steering angle sensor and maintain the required angular accuracy.
VESTAMID® L1930 offers exactly these properties: As a polyamide 12 it is temperature-stable over a wide range, from -40°C to 125°C. Its properties change only very slightly with variations in ambient humidity; molded parts show almost no dimensional changes. It has extraordinarily high impact resistance and notched impact strength, even well below freezing point. It has good to very good resistance to oils and greases, fuels, hydraulic fluids, and salt solutions, making it ideal for automotive use. Its outstanding abrasion resistance and low sliding friction coefficient are essential qualities for the gear wheels of the steering angle sensor, and it also has noise- and vibration-damping properties.
VESTAMID® has been used in the automotive sector by well-known car makers for 50 years. Continued development has led to an increasingly large number of application areas, ranging from line systems through cable sheathing to the very smallest injection-molded parts.
